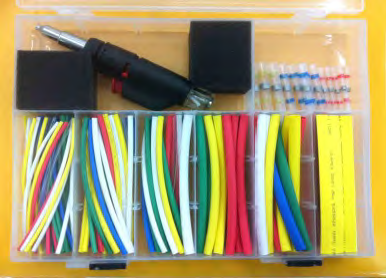

174 PCS HEAT SHRINK TUBE /TOOLS KIT

174 PCS HEAT SHRINK TUBE /TOOLS KIT
Product No : 120916106
Product Name : 174 PCS HEAT SHRINK TUBE /TOOLS KIT
Product Description
G5
110ºC Solder sleeve wire splices
Solder sleeve wire splices[AWG22-18][0.5~1.0mm2]-Red
Solder sleeve wire splices[AWG16-14][1.5~2.5mm2]-Blue
Solder sleeve wire splices[AWG12-10][4~6mm2]-Yellow
GAST-B Heat Shrink Tube
Ø1.5*102mm(white*10,red*10,blue*10,yellow*10,green*10,clean*10)
Ø2.5*102mm(white*5,red*6,blue*6,yellow*6,green*6,clean*6)
Ø3.5*102mm(white*4,red*4,blue*4,yellow*4,green*4,clean*5)
Ø5.0*102mm(white*3,red*4,blue*3,yellow*3,green*3,clean*4)
Ø6.0*102mm(white*1,red*2,blue*2,yellow*2,green*1,clean*2)
Ø10*102mm(white*1,red*2,blue*2,yellow*2,green*1,clean*2)
GHG-1 (HOT GUN)
\"proimages/126/120916106-2.png\"
Inquiry
Product Introduction
G5 General purpose, flame retardant polyolefin tubing
Applications: One piece design, it consists of transparent heat shrinkable sleeve and
fluxed solder. Provides insulation, inspection, strain relief and water proof.
Makes installation easily and lower the installed cost. Color hot-melt glue on two ends
of heat shrinkable tube, it’s very convenience to use the exact wire dimension.
Characteristic :
Shrinkage Ratio: 2:1
Very flexible, highly flame retardant
Resistant to common fluids and solvents
Excellent physical, chemical, and electrical properties
Operating temperature range:
Operating temperature : -55ºC ~ 125ºC
Minimum shrink temperature : 70ºC
Minimum fully recovery temperature : 110ºC

GAST-B 110 Solder sleeve wire splices
Applications: One piece design, it consists of transparent heat shrinkable sleeve and
fluxed solder. Provides insulation, inspection, strain relief and water proof.
Makes installation easily and lower the installed cost. Color hot-melt glue on two ends
of heat shrinkable tube, it’s very convenience to use the exact wire dimension.
Characteristic:
Shrinkage ratio 2:1
Waterproof for wiring splices
Transparent sleeve provides precise inspection
Easy control soldering process
Operating temperature range:
Operating Temp. -55ºC ~ 105ºC
Minimum Shrink Temp. 60ºC
Minimum Fully Recover Temp.100ºC
Starting temperature of solder melt : 115˚C
