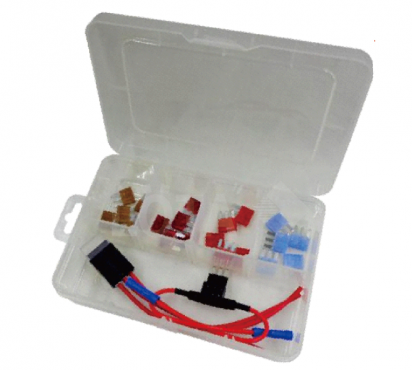

22PCE MICRO 3 FUSE KIT
Product Introduction
Micro 3 Fuse-5A(Tan) x5pce
Micro 3 Fuse-7.5A(Brown) x5pce
Micro 3 Fuse-10A(Red) x5pce
Micro 3 Fuse-15A(Blue) x5pce
Dual Lead Fuse Tap For Micro 3 Fuse x1pce
In-Line Fuse Holder For Micro 3 Fuses
(With Cover) x1pce

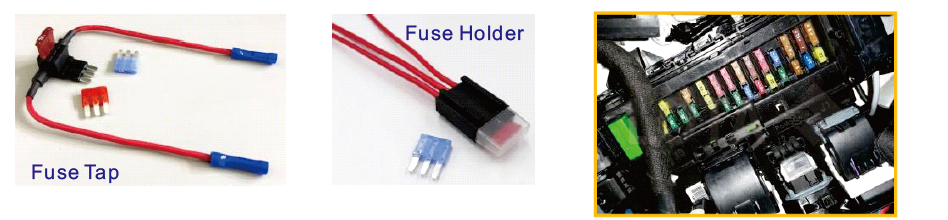

Dual Lead Fuse Tap For Micro 3 Fuse:
•Molded Parts Material: Nylon with Glass Fiber
•Terminals Material: Brass with Tin Plated
•Suitable Rated Current:
Maximum Installation Rating
- Existing Circuit: 20A
- Add-on Circuit: 15A
•Wire: #16 AWG, End with Insulated
Crimp-Type Coupler Blue Butt Connector
•Wire Length: 5.3"
•Designed For Turn One Slot Into Two.
Micro 3 Fuse:
•Voltage Rating: 32V
•Body Material: Nylon
•Material: Zinc Alloy
•According to SAE 2741 standards.
In-Line Fuse Holder For Micro 3 Fuse (With Cover):
‧Molded Parts Material: Nylon with Glass Fiber
‧Cover Material: PP
‧Contact Material: Brass
‧Suitable Rated Current: 20A Max.
‧Wire Gauge: Center #14 AWG / Side #16 AWG
‧Wire Length: Center 5" / Side 6"
‧Interlock Type For Multiple Mounting
