Product No : 780-8387

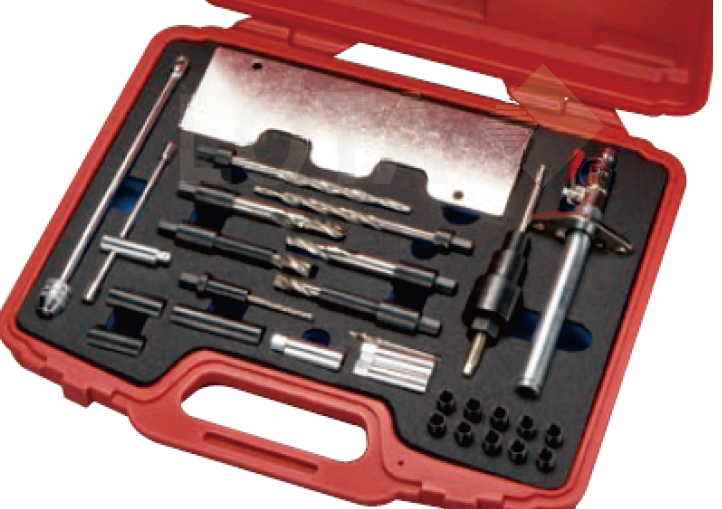

Product Name : 28 PCS GLOW PLUG THREAD REPAIR TOOL FOR VW/AUDI
Product Introduction
Introduction:
-For quick and professional drilling out damaged or torn-off glow plugs without removing
the cylinder head -Allows recutting or repairing of the glow plug thread and cleaning of the
electrode bore -Exact depth and drilling angle are reached using guide sleeves
Suitable for:
-M10x1 glow plug thread on e.g.
WV Passat, Audi V6 TDI with 2.5I / 2.7l / 3.0l engines
-with engine codes: AFB, AKE, AKN, ASB, AYM, BAU, BCZ, BDG, BDH, BFC, BKN, BKS,
BMK,BNG, BSG, BUN, BUG
-includes the following tools:
-cover plate for intake ports -compressed air adapter for injector bore
-9.1 mm drill for M10x1 -11.1 mm drill for M12x1 -tap with guide sleeve for M10x1 threads
-tap with guide sleeve for M12x1 threads
-10 threaded inserts for M10x1 with external thread M12x1 -M6x1.25 taps
-extraction tool -2 reamers 4.8 mm, long and short type -reamer 5.8 mm long type
-3 guide sleeves Ø 17.5 mm OD - 38 mm length Inside Ø 9 mm and 13 mm – 63 mm length
13 mm inside Ø
-2.4 – 5.5 mm tapping holder 240 mm long with 1/4" drive
-3 extractor electrodes for 2.5 – 3.5 -4 mm
