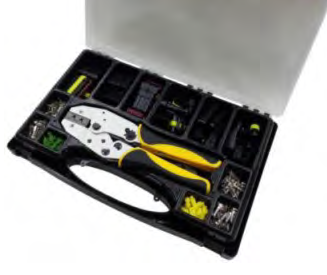

343PCE LIGHT (1.5) SUPERSEAL AUTO CONNECTOR & TOOL KIT

343PCE LIGHT (1.5) SUPERSEAL AUTO CONNECTOR & TOOL KIT
Product No : 041180102
Product Name : 343PCE LIGHT (1.5) SUPERSEAL AUTO CONNECTOR & TOOL KIT
Product Description

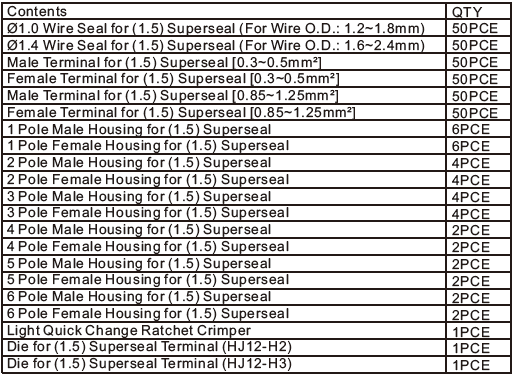

proimages/801/041180102-2.png
Inquiry
Product Introduction
Die:
proimages/801/041180101-2.png

Material: AISI-4140
Procedure: Precision and Wax-Lost Casting
Treatment: Finished with Heat Treatment
Surface Treatment: Zinc Phosphate
Light Quick Change Ratchet Crimper:
Material:
Body: Hot Aluminum 6061
Treatment: Finished with Heat Treatment
Surface Treatment: Anodizing
Handle: PP+TPR(PAHS Approved)
Wire Seal:
Material: SIR-405 Silicone
Φ1.0 Color: Green
Φ1.4 Color: Yellow
(Seal O.D.: Φ6.1)
Male/Female Terminal:
Terminal Material: Brass
Chemical Treatment: Pre-Tin
Feeding Type: Horizontal
Male/Female Housing:
Housing Material: PA66+GF
Color: Black
Operating Temperature Range: -40°C~120°C
