BATTERY CHARGER

BATTERY CHARGER
Product No : 04106435C

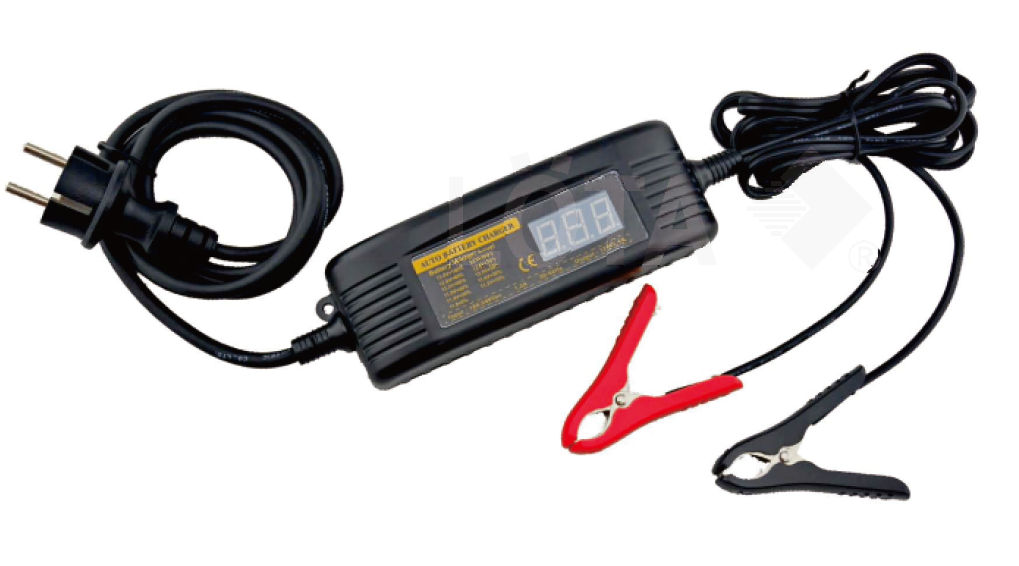

Product Name : BATTERY CHARGER
Inquiry
Product Introduction
This charger use microprocessor to monitor the charging process. Therefore it is a smart
charger with protection of reverse connection, over-voltage, over current, short circuit,
and over-charging. It has wide working temperature, and it has IP54 protection.
1.Working temperature:-10 - 40ºC/ working humidity: 90%
2.Storage temperature:-20-70ºC
3.Input voltage: AC 180-240V 50-60H
4.Input current: 1.2A / Output voltage: 12V
5.Maximum output power: 48W
6.Charging method: stage charging
a:Battery <=11V, constant small voltage charging.
b:Battery>11V, constant voltage charging.
c:Charging current <=1.5A, constant small current charging.
d:Charging current <= 0.5A, pulse charging.
7.Charging method: stage charging
