NIXIE DISPLAY CIRCUIT TESTER

NIXIE DISPLAY CIRCUIT TESTER
Product No : 089-1674B

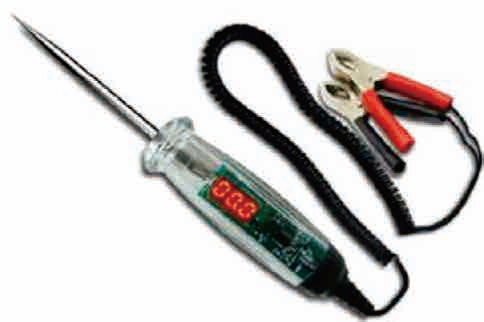

Product Name : NIXIE DISPLAY CIRCUIT TESTER
Product Description
For 12, 24, and 48V systems
Suggest system :12~48V DC
Measured Voltage : 0.3~60V DC
Extra-long 12' coil cord with batter4y clips
Testing Current < 10mA
Operating Temperature:0~50º (32~122ºF)
Humidity≤80%
Inquiry
Product Introduction
Operation:
1.Red clip connect with positive (+) polarity, and black clip connect with
negative (-) polarity. The light will show “00.0" when noting connecting with
the testing probe.
2.When the tester probe connects with positive voltage, the nixie light will display
the voltage. If the voltage is less than 0.3VDC, buzzer will be on,
and green LED will light up. If the voltage is greater than 60VDC, the nixie light will display “ Err”.
3.When the tester probe connects with negative pole, green LED will light up, and buzzer will be on.
