SOUND LEVEL METER

SOUND LEVEL METER
Product No : 01A092023

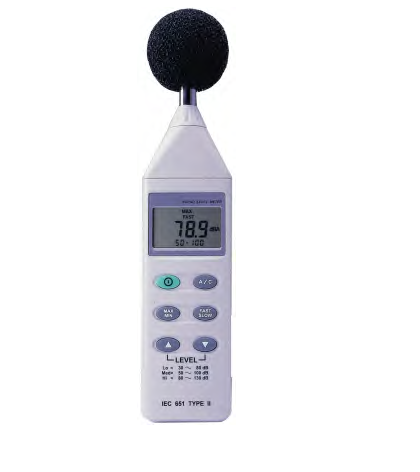

Product Name : SOUND LEVEL METER
Product Description
Specifications:
Level Range: Lo=30~80db ; Med=50~100dB ; Hi=80~130dB
Accuracy:±1.5dB (ref 94dB@ 1KHz)
Frequency Weighting :A / C
Time Weighting: Fast, Slow
Dynamic Range : 50dB
Frequency Range : 31.5Hz to 8KHz
Microphone : Electret condenser microphone
Auxiliary Outputs: AC/DC Output
Battery : 9V x 1
Dimensions : 275 x 64 x30mm
Weight : 280g
Inquiry
Product Introduction
Our standard sound level meter has a wide dynamic range from 30 to 130dB. It has
different frequency weighting A and C to respond to human sense or machine monitoring
purposes. For different sound pattern, it also supplies Fast and Slow time constant setting.
Analog output is also provided for other use.

Features:
•MAX/MIN function
•Level range display
•Resolution 0.1dB
•AC/DC signal output
•IEC 651 TYPE II
