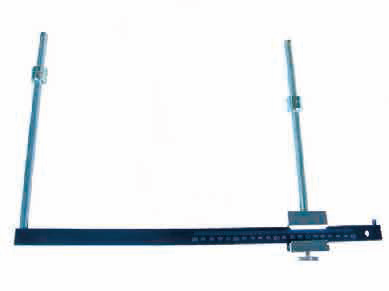

VERNIER CALIPER FOR BRAKE DISCS
Product Introduction
Introduction: Designed to measure the diameter of brake discs
with the wheels still in situ on the vehicle.
Application: Span (measuring range) -200~400 mm
Instruction:
Insert VernierCaliper into suitable rim holes and carry out
the measurement of the of the brake disc.
Note:if the measurement tips are in contact with the rim
before touching the brake disc at the out diameter, use the
sides to compensate for the missing difference in height if
conditions allow.
To do this, push the sides up to measuring tips.
Note:If you need to use the slides to measure the diameter,
rememberthe deduct 10 mm from the measured brakes disc
diameter value.
